redarrowindustries plastic processing equipment

Plastic Processing Machinery and Equipment for Converters and Recyclers

Plastic Processing Machinery and Equipment for Converters and RecyclersPlastic Processing Machinery and Equipment for Converters and RecyclersPlastic Processing Machinery and Equipment for Converters and RecyclersPlastic Processing Machinery and Equipment for Converters and Recyclers

Sprue Pickers

SMUS series: Payload 2 kg

SMUS series: Payload 2 kg

SMUS series: Payload 2 kg

Sprue Pickers

SMUS series is a swing-type small robot,
and it is the simplest and economical product.

  • Rotating-type small robot of the air cylinder operating method.
  • Deal with two-layer and three-layer mold.

Purchase

STEC-K4

SMUS series: Payload 2 kg

SMUS series: Payload 2 kg

It is a practical controller for SMUS series swing-type robot.



Features

  • 3 languages support (Standard-Korean, English)
  • Alarm history
  • Emergency stop input/output function
  • 18 basic modes of robot’s movement installed
  • Mold memory function up to 32 items
  • TEN-KEY function
  • Additional Usable keys

Video

Sprue Picker SMUS800 w/ Wrist Flip

Features

  • Adjustable Discharge Angle
  • Discharge Angle 50 - 90 Degrees
  • 800 mm (31.5 in.) Y Stroke
  • 100 mm (3.94 in.) X Stroke
  • 90 D Wrist Flip, Standard

Purchase

Specifications

Download PDF

Take Out Robots

Francia SERIES: Payload 3 - 50 kg

Francia SERIES: Payload 3 - 50 kg

Francia SERIES: Payload 3 - 50 kg

Francia series is a smart robot that combines the excellent performance  and the highly precised control capacity of the servo robot.

  • Improved Performance
  • Integrated control and monitoring of injection process optimization machine (MTC, Chiller etc.) through controller
  • Add various patterns of actions by user program
  • Production information management such as quantities, cycle time and alarm history
  • Setting the collision detection, entry prohibition area functions to protect workers and robots
  • Control accuracy and torque enhancement through the front and the rear drive by servo type
  • Mechanism rigidity for vertical axis improved more than 30% (3D vibration analysis)
  • Enhancement of vibration control function by applying reinforced anti-vibration filter

MARKET

  • Automotive
  • Medical
  • Packaging
  • Micro & Precision
  • Home Appliance
  • Pallets

Yucon 800 SERIES HMI

Francia SERIES: Payload 3 - 50 kg

Francia SERIES: Payload 3 - 50 kg

Top Entry Robots for injection molding, High Speed Robots Injection Molding, Cartesian Robots

YUCON series is a user-oriented controller, which provides the most stable and optimized take-out capacity.


Features

1. Convenience

  • TFT Touch Screen (66536 Color)
  • Multi Language Support

2. User Friendly

  • UI Design
  • Easy Understanding through manuals and animations
  • User configures motion pattern
  • Providing the sample, initial, rejects and statistics

3. Controller Reliability

  • Optimizing design improves system reliability
  • Energy saving by recycling of regenerative energy
  • Reliable heat control

4. Program Flexibility

  • Easy operation with YUDO mode setting
  • Easily add various actions by users program
  • Respond to various market needs

Option

  • Integrated control and monitoring of injection process optimization machine (MTC, Chiller, etc.)
  • Productivity and equipment error report (Email, SMS)

Francia Specifications

Francia for 80 to 3300 ton machines (pdf)

Download

Francia for 80 to 385 ton machines (pdf)

Download

Francia H for 110 to 930 ton machines (pdf)

Download

GIGA SERIES: Payload 10 - 50 kg

GIGA SERIES: Payload 10 - 50 kg

GIGA SERIES: Payload 10 - 50 kg

GIGA series is a top robot that is highly recognized with its outstanding performance.  It has also been considered as the most reliable product that is optimized for high-speed and high-precision injection molding.
MARKET

  • Automotive
  • Packaging
  • Micro & Precision
  • Home Appliance
  • Mobile

 FEATURES

  • High-speed  cycle time
  • Adopted inline bridge structure.
  • Safety and energy-saving function — work zone, restricted zone setting, servo sleep, and power consumption display.
  • Convenient function for user — alarm transmission, maintenance information, robot monitoring, history management, and so on.
  • Adopted front axis AC servo as well as the front and the rear operating method.
  • Vibration control function

Yucon 700 SERIES HMI

GIGA SERIES: Payload 10 - 50 kg

GIGA SERIES: Payload 10 - 50 kg

YUCON series is a user-oriented controller, which provides the most stable and optimized take-out capacity.


Features

1. Convenience

  • Easy user programming with 12 command sets.
  • Users can create their own motions
  • Easy program change and download by USB memory
  • Alarm history, operation history
  • 8 languages support (standard : Korean, English, Spanish)
  • Option : all foreign languages
  • Robot monitoring in the office through Ethernet(10/100) (Option)

2. Safety

  • Collision detection
  • Emergency stop to avoid collision during robot’s operation
  • Mold protection
  • Work limited area setting

3. Performance(Energy-saving)

  • Anti-vibration control algorithm installed
  • Servo sleep function during standby
  • Energy-saving effect
  • Power consumption display
  • Electric energy check


Downloads

GIGA (pdf)

Download

GIGA 1012 x 2

Two GIGA 10 12 robots in sync.

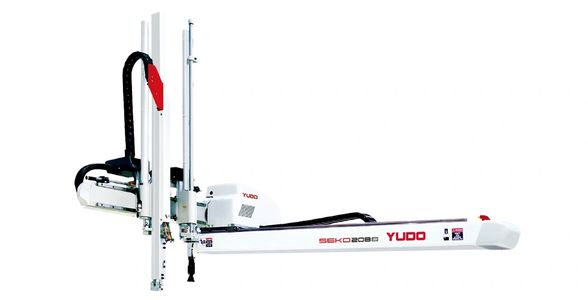

SEKO SERIES: Payload 2 to 5kg

SEKO SERIES: Payload 2 to 5kg

SEKO SERIES: Payload 2 to 5kg

SEKO Series is a small take-out robot that is lightweight and take-out speed improvement through its effective mechanical design.   Adopts the integrated operating method of AC servo (Z axis)  and air cylinder. It is also the most economical among all the traverse types.


MARKET

  • Automotive
  • Packaging
  • Home Appliance
  • Mobile

Features

  • Realized lightweight through the optimized part of the whole robot and its design structure.
  • Simplified modification method for the position change of operation/nonoperation.
  • Adopted new controller (YUCON-260) that mounts various operational functions.


Yucon 260 SERIES HMI

SEKO SERIES: Payload 2 to 5kg

SEKO SERIES: Payload 2 to 5kg

YUCON 260 series is a user-oriented controller, which provides the most stable and optimized take-out capacity.


Features

1. General Specification

  • 320x240 size TFT LCD(65,536 color)
  • 4 languages support
  • Push Rock reset type emergency stop switch
  • 3 Position dead man's switch
  • 60 different mold memories
  • 36 different sequences pre-programed
  • Abcrm list: adlarm occurred date, time display 100 list record and detailed help view avaialble
  • RS232C/mini USB port download

Downloads

SEKO for 80 to 385 ton machines (pdf)

Download
