redarrowindustries plastic processing equipment

Plastic Processing Machinery and Equipment for Converters and Recyclers

Plastic Processing Machinery and Equipment for Converters and RecyclersPlastic Processing Machinery and Equipment for Converters and RecyclersPlastic Processing Machinery and Equipment for Converters and RecyclersPlastic Processing Machinery and Equipment for Converters and Recyclers

Gravimetric Dosing and Feeding Machines

MCBalance: Gravimetric High Precision Dosing

MCBalance: Gravimetric High Precision Dosing

MCBalance: Gravimetric High Precision Dosing

The MCBalance* is the highest standard in gravimetric dosing. It  proves its value on a daily basis in all branches, under all  circumstances in injection molding, blow molding and extrusion.

The dosing cylinder and patented weighing technology ensure extremely  accurate dosing, even when low dosage rates are required. In this way,  high savings on expensive additives can be achieved.

The continuous loss-in-weight measuring feature and automatic motor  speed adjustment are key to a stable production process. This guarantees  high quality end products and fewer rejects.


* also for clean room and high temperature applications



Features MCBalance

  • Capable of dosing at extremely low dosage rates
  • Continuous loss-in-weight measuring
  • Automatic material calibration
  • Integrated hopper loader control
  • Recipes storage function
  • Industry 4.0 ready
  • 8” full color touch scree

MCTwin: the optimum way to handle regrind

MCBalance: Gravimetric High Precision Dosing

MCBalance: Gravimetric High Precision Dosing

The MCTwin uses Movacolor’s gravimetric dosing technology. This means  continuous loss-in-weight measurement and automatic adjustment.  The functionality of dosing regrind in combination with the additive  makes the MCTwin a sustainable solution for your production process.

One dosing unit of the MCTwin functions as the master unit and doses  regrind, while the second operates in conjunction with the master unit  and doses the additive. In practice this means that the more regrind is  available, the less colorant is added. This enables you to avoid  over consumption of additives and to reuse the maximum of regrind. The  process is fully automatic, so you always dose the maximum percentage of  available regrind. The quality remains constant, production run  after production run, 24/7.



Benefits MCTwin

  • Easy to install
  • Full flexibility
  • Small footprint


Top of Page

MCBalance

Cleaning the Gravimetric Dosing Machine

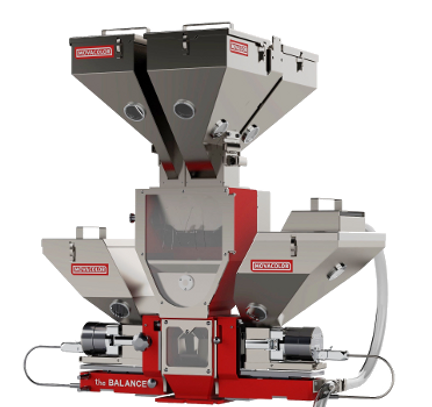

Hybrid blending and dosing

MCHybrid 30: the best of dosing and blending in one system

By using these two blending and dosing technologies in one machine,  you are able to control the main materials in any given ratio and at the  same time dose additives at low percentages with unequaled accuracy.


The MCHybrid 30* is a unique dosing concept that combines two technologies into one system: batch blending and in-line dosing.

The main materials or regrinds are mixed in an extreme compact  gravimetric batch blender. Because the system only blends the main  materials, the blending speed is high and therefore the batch blender  remains small.


The additives are dosed gravimetrically in-line, directly on the throat of the injection molding machine or extruder.

By using these two blending and dosing technologies in one machine,  you are able to control the main materials in any given ratio and at the  same time dose additives at low percentages with unequalled accuracy.



* patent pending


If requested, the blender itself can also be used without the in-line  blending units. In that case the capacity and the accuracy will reduce  compared to the MCHybrid concept.


The MCHybrid 30 is also available in a specially developped regrind  version: the MCHybrid 30R-series. Interested in this special regrind  version of the MCHybrid 30? Inform with our dosing specialists.



Features MCHybrid 30

  • Fully gravimetric
  • 8” full color touch screen with user-friendly interface
  • Able to store up to 1,000 recipes
  • Capacity max. 350 kg/h
  • Removable and spill-free hoppers
  • 2-4 main components and max. 14 in-line additives
  • Extremely compact
  • Able to handle powders and liquids in one system
  • Quick and easy change of additives
  • 100% control of all your materials
  • Industry 4.0 ready

Benefits MCHybrid 30

  • Compact design
    Because only the main components are blended gravimetrically, a high  capacity can be achieved with a relatively small batch blender.
  • Different materials handled
    The in-line dosing of the additives allows easy color change plus the  option to use additives that cannot be handled with a regular batch  blender, such as powders or liquids.
  • Extremely accurate
    As the additives are dosed in-line, no segregation can take place which prevents color variations.


Top of Page

MCHybrid 30

Gravimetric Liquid Dosing Machines

MCLiquid: reliable and spill free liquid dosing

MCLiquid: reliable and spill free liquid dosing

MCLiquid: reliable and spill free liquid dosing

Coloring with liquid can be a challenging operation. It all depends  on reliable dosing, often at extreme low dosage rates. Variation in  viscosity of liquids and spill-free handling are the main issues. Movacolor has developed a modular liquid dosing system with one  universal motor unit, two pump types and several spill-free packaging  concepts. This offers you the possibility of composing your optimum  configuration.

Peristaltic pump

The peristaltic pump is used in processes with frequent color change. Available as gravimetric & volumetric dosing system. Advantages:

  • Easy color change
  • The gravimetric system provides a constant output
  • Low dosing rates
  • Easy to clean

Disadvantages:

  • Limited life time of pump hose
  • Limited pressure build-up
  • In volumetric mode the output depends on viscosity

A gravimetric peristaltic pump is an ideal combination for color  changes. The gravimetric control automatically compensates for the  disadvantages of a peristaltic pump: the output of a peristaltic pump is  heavily depending on the viscosity of the liquid, the type of pump hose  used and the age/ wear of the pump hose.

Mono pump/ gear pump

In case of long runs we advise to use a mono pump. Available as gravimetric & volumetric dosing system. Advantages:

  • long life time
  • can build pressure up to 10 barg
  • output independent of viscosity
  • easy change of pumps
  • extreme low dosing rates (gear pump)
  • high dosing rates (mono pump)

Disadvantages:

  • system should never run dry
  • difficult to clean

Both systems are also available in a volumetric configuration. To complete the package we supply in-line mixers and special nozzle adapters for easy installation and easy cleaning. MCLiquid: your total liquid dosing concept.

Features MCLiquid

  • 100% traceability by gravimetric control
  • 8” full color touch screen
  • Automatic material calibration
  • Recipes storage function
  • Free choice of pump type and packaging concept
  • Total integrated solution including  mixers and neckpieces
  • Industry 4.0 ready

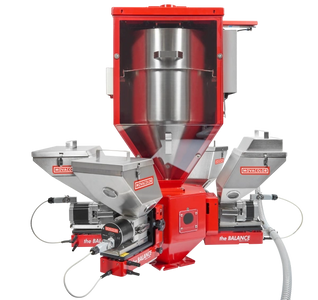

Inline mixer for injection molding or extrusion

MCLiquid: reliable and spill free liquid dosing

MCLiquid: reliable and spill free liquid dosing



For the most PET injection molding or extrusion  processes the normal inline dosing principle works without the use of  inline mixers. But when the plasticizing screw of the extruder or injection molding machine has a limited homogenization capability, it is beneficial to use an inline mixer.  A selection from our inline mixer product range (for information about these products, please contact our dosing specialists):

Optimum performance with Inline mixers

Whether or not to use an inline mixer depends on the kind of plastic  production process. The dosing specialists of Movacolor can give you a  professional tailor made advice based on your type of production  process. Movacolor has developed a range of inline mixers that perform  optimal in homogenization and coating of low melting colors or  additives.

Motorized inline mixers

The motorized inline mixers in the Movacolor product range are ideal for use in the most demanding applications for  both injection molding and extrusion applications. The complete inline  mixer construction is made of robust stainless steel, together with the  small 3-phase motor this results in a compact, solid and durable end  product. The inline mixer is available as single inline mixer or  combined water-cooled neckpiece inline mixer.

Inline mixers for PET

For PET applications a special inline mixer is designed with  integrated water cooled flanges. The inline mixer is available with the  50 mm outlet or the 90 mm outlet depending on the size of the PET  processing machine. Both type of inline mixers can be carried out with  an extra water cooled flange for mounting a second Movacolor dosing  unit.

Easy cleaning of inline mixers

The inline mixers have a user-friendly design which makes it easy in  use. The disassemble process of the inline mixer is made simple. Just  remove the 3 phase-motor of the inline mixer with the counter rotating  mixer blades and all parts are reachable for maintenance and cleaning.

Inline mixers and hybrid systems

With a MCHybrid 30 or MCHybrid 200 blending and dosing system the main materials or regrinds  are mixed in a compact gravimetric batch blender. Next to that the  additives are dosed gravimetrically in-line, directly on the throat of  the IMM or extruder. By using the blending and dosing technology of the MCHybrid 30 and MCHybrid 200 in one machine, you are able to control the capacities of the main materials in any given ratio and dose materials like regrind and masterbatch at low percentages with great accuracy.




Top of Page

Flake and Powder dosing

MCHigh Output: accurate dosing of high capacities 50kg/hr to 1200kg/hr

MCHigh Output: accurate dosing of high capacities 50kg/hr to 1200kg/hr

MCHigh Output: accurate dosing of high capacities 50kg/hr to 1200kg/hr

The MCHigh Output is the gravimetric answer for dosing high  capacities from 50 kg/h up to a maximum of 1,200 kg/h. The system doses  this high output of additive without making any concessions to accuracy.  The gravimetric technology makes this possible for both injection  molding and extrusion applications.

The unit has an integrated weighing module that precisely measures  the throughput by the lossin-weight principle. The fully gravimetric  system continually calibrates the dosage and adjusts automatically. The  refilling of the MCHigh Output is controlled by an integrated pneumatic  operated knife valve at the top flange.

The MCHigh Output handles granulates, difficult regrinds and  free-flowing powders. It is capable of processing hot materials up to  180°C.

“The MCHigh Output is perfectly capable of dosing our dried PET flakes that reach up to 180 °C”



Features MCHigh Output

  • Full gravimetric control
  • Easy to clean: the motor/screw assembly can be removed without tools
  • Can handle granulates, difficult regrinds and free-flowing powders
  • Equipped with an integrated slide valve to control the material loading
  • Can handle hot materials up to 180°C
  • Industry 4.0 ready



Benefits MCHigh Output

  • Wide capacity range
  • Multi material dosing
  • Easy integration
  • Gravimetric or volumetri

MCHigh Output 2500R: high capacity low bulk density dosing

MCHigh Output: accurate dosing of high capacities 50kg/hr to 1200kg/hr

MCHigh Output: accurate dosing of high capacities 50kg/hr to 1200kg/hr

The MCHigh Output 2500R is a complete system for feeding low density  regrind at high dosing rates. The unique design with a mixing rate of  maximum 75% can be mounted directly on top of the injection molding  machine or extruder. The gravimetric technology controls the dosing rate  and provides exact material consumption data for track and  trace purposes.

The unit has an integrated weighing module that precisely measures  the throughput by the loss-in-weight principle. Refilling of the hopper  can be done either by direct mounting of the hopper-loader on top of the  system or by the integrated knife valve at the top flange. The refilling  is controlled by the gravimetric system.

The MCHigh Output 2500R handles granulates and difficult regrinds  like PET bottle flakes. It is capable of processing materials up to 180°C.

The water-cooled neckpiece with integrated mixer ensures the right  mixture of materials for your product and the possibility to add  additional dosing stations for masterbatch or other additives.


Features MCHigh Output 2500R

  • Fully gravimetric control
  • Can handle low bulk density regrinds
  • Direct mount loader option
  • Magnet bars for separating metal parts
  • Water-cooled neckpiece with integrated mixer
  • Industry 4.0 ready

Benefits MCHigh Output 2500R

  • High mixing rate
  • Direct mounting
  • Easy integration

MCPowder: trouble free dosing of non-free-flowing powders

MCPowder High Output: trouble free dosing of heavy duty powders

MCPowder High Output: trouble free dosing of heavy duty powders

The MCPowder addresses one of the most difficult challenges in the field of dosing powder, especially when we talk about non-free-flowing powders at  extreme low rates. Expensive powder additives that add high impact to  your process require the best in the field of accuracy and reliability.

Movacolor has, based on its proven gravimetric technology, developed a  compact powder dosing unit to do just that. It doses as low as 100 g/h,  but also as high as 40 kg/h. Double spiral and hopper agitation ensure  trouble free dosing of the most difficult powders. And this is  accomplished in both injection molding and extrusion applications.

The unit operates as a single unit, but can also be integrated into  our unique modular continuous blending system, allowing to add the most  difficult powders to the blend of your extruder. The MCPowder is a truly  unique product in the market that makes you forget any powder  dosing problem you currently might have.



Features MCPowder

  • Double spiral/auger design for reliable dosing of non-free-flowing powders
  • Agitator avoiding material clogging or rat holing
  • High grade polished hopper
  • Quick release coupling for easy cleaning
  • Capacity 0,1 - 40 kg/hr
  • Special support frame for hopper loaders available
  • Ready for Industry 4.0

Benefits MCPowder

  • Extremely accurate and robust
  • User-friendly
  • Modular
  • Gravimetric or volumetric

MCPowder High Output: trouble free dosing of heavy duty powders

MCPowder High Output: trouble free dosing of heavy duty powders

MCPowder High Output: trouble free dosing of heavy duty powders

The MCPowder High Output stands up to the challenge of dosing powder.  For your process stability and quality control an  accurate and reliable powder dosing unit is often essential. And this  under all circumstances.

Movacolor has, based on its proven gravimetric  technology, developed a heavy duty powder dosing unit capable to dose  maximum 450 kg/h of non-free flowing powder. The design is based on a  single spiral and agitator, driven by a heavy duty 3 phase motor. The  hopper can be increased in a modular way from 25 to 50 liters.

The unit is installed on two heavy duty load cells.  Operation is done via our standard 8” full color touch screen. The unit  operates as a single unit, but can also be integrated into our unique  modular continuous blending system, allowing to add the most difficult  powders to the blend of your extruder.



Features MCPowder High Output

  • Single spiral design for reliable dosing of
    non-free-flowing powders
  • Agitator avoiding material clogging or rat holing
  • High grade polished hopper
  • Two heavy duty load cells
  • Modular hopper design
  • Industry 4.0 ready

Benefits MCPowder High Output

  • Acurate and robust
  • User-friendly
  • Modular


 Top of Page

gravimetric Continuous blending

MCWeight: self-regulating material measuring system for extruders

MCWeight P: measuring actual feed capacity of an extruder consuming powder

MCWeight P: measuring actual feed capacity of an extruder consuming powder

The MCWeight is specially designed to measure the actual feed capacity of an extruder. It has an integrated weighing module to accurately measure throughput and an integrated knife valve to control the filling.

Combined with one or more Movacolor units, the MCWeight tracks even the smallest capacity variation of the extruder. It adjusts the additive dosing from the dosing units accordingly.

Dried material with a temperature up to 180°C can be handled with the MCWeight.

This throughput measurement system enables you to get the best out of  your extrusion line. It gives you real time insight into your actual  line capacity and tracks the consumption of your materials.  In combination with our MCLine Control it can even control your complete  extrusion line including upstream and downstream equipment.



Features MCWeight

  • For granulates, regrinds and free-flowing powders
  • Continuous loss-in-weight measuring
  • Fast response to capacity changes
  • Automatic filling through an integrated, pneumatic knife gate in top flange
  • Control via 8” full color touch screen
  • Available in 100, 500 or 1,200 kg/h
  • Industry 4.0 ready


Benefits MCWeight

  • Plug and play
    The MCWeight can be connected to up to 14 Movacolor dosing units. No  interface control with the extruder is required. Per co-extruder you  can install an MCWeight that allows the controlling of multiple MCWeight  units with one control interface.
  • Quality control
    Quality is controlled by continually monitoring data from both the MCWeight and the dosing units. The MCSmart program gives you this maximum control. With the MCLine Control you can even fully control the extrusion line.
  • Basis for full control of your extrusion line
    The MCWeight is the perfect basis for your MCContinuous Blender or for your MCLine Control system

MCWeight P: measuring actual feed capacity of an extruder consuming powder

MCWeight P: measuring actual feed capacity of an extruder consuming powder

MCWeight P: measuring actual feed capacity of an extruder consuming powder

The MCWeight P is designed for measuring pourable powders like PVC  dry blend. The MCWeight P can also be applied for granular materials or  pourable regrinds that contain dust. The construction of the pneumatic  knife gate is dust tight. The manchets are dust tight and there are  additional dust filters to handle powder.

The MCWeight P, like the MCWeight, is designed to measure the actual  feed capacity of the extruder, save expensive additives and ensure high  quality end product in extrusion production.

The MCWeight P measures the throughput of the main material and  provides the exact throughput/output of your extruder within seconds of  start up. Combined with up to to six MCBalance  dosing systems, the MCWeight tracks the smallest capacity variation of  the extruder. The additive dosing from the MCBalance(s) adjusts  accordingly. The MCWeight P for powder comes in 500 kg/h and 1000 kg/h  versions.



Features MCWeight P

  • Continuous loss-in-weight measuring
  • Automatic filling through an integrated, pneumatic knife gate in top flange
  • Communication TCP/IP or Modbus
  • Menu guided control and graphic, LCD display with backlight
  • Capacity from 3 kg/h up to 1000 kg/h depending on the material
  • Industry 4.0 ready

Benefits MCWeight P

  • More control over the production process
  • Prevents overdosing
  • Quick color changes that can be performed during operation without interrupting the production process
  • Robust design and very easy to clean
  • Plug and play










 Top of Page

MCContinuous Blender: unique modular in-line blender system

MCHybrid 200: the best of dosing and blending in one system with real time throughput measurement

MCHybrid 200: the best of dosing and blending in one system with real time throughput measurement

Advanced blending systems are often seen as complete plant engineered  solutions. Movacolor has developed a unique modular system that allows  you to put together a full gravimetric continuous blending system. Up to  15 components can be controlled from one controller. These systems can  be installed on one extruder or on multiple co-extruders, creating a  control platform for multiple continuous blenders in one system.

The system grows with your future needs. New components can easily be integrated without changes to the controller.

The MCContinuous Blender covers most of the available materials like  granulates, regrinds, powders and liquids. All this in one system, with  one standard controller and integrated loader control.

All the benefits of a continuous blender are suddenly within your  reach. Our experience with in-line gravimetric dosing helps you to  achieve the required accuracy for all your components, directly on the  extruder.



Features MCContinuous Blender

  • Capacities up to 2,000 kg/h. Fully gravimetric
  • Modular system: granulates, regrinds, powders and liquids
  • Handles up to 15 components
  • Multiple continuous blenders on one standard controller
  • High accuracy and direct response to recipe change
  • Integrated loader control
  • Can be extended or modified easily for future needs
  • Industry 4.0 ready

Benefits MCContinuous Blender

  • Modular control system
    The 8” full color touch screen controller can control up to 15  components on either one extruder or divided over several  co-extruders. Standard software can be configured on the spot and  systems can be expanded without additional controller changes.
  • Different materials handled
    All standard Movacolor gravimetric units  can be integrated into one blending system, able to dose granulates,  regrinds, powders and liquids in the configuration you wish.








 Top of Page

MCHybrid 200: the best of dosing and blending in one system with real time throughput measurement

MCHybrid 200: the best of dosing and blending in one system with real time throughput measurement

MCHybrid 200: the best of dosing and blending in one system with real time throughput measurement

The MCHybrid 200* is a unique dosing concept that combines two technologies into one system: batch blending and in-line dosing.

The main materials or regrinds are mixed in an extreme compact  gravimetric batch blender. Because the system only blends the main  materials, the blending speed is high and therefore the batch blender  remains small.

The additives are dosed gravimetrically in-line, directly on the throat of the injection molding machine or extruder.

By using these two blending and dosing technologies in one machine,  you are able to control the main materials in any given ratio and at the  same time dose additives at low percentages with unequalled accuracy.


The MCHybrid 200 is available for capacities up to 1,000 kg/h with  2-8 blending components and up to maximum 14 in-line dosing components.

If requested, the blender itself can also be used without the in-line  dosing units. In that case the capacity and the accuracy will reduce  compared to the MCHybrid concept.

* patent pending



Features MCHybrid 200

  • Fully gravimetric
  • 8” full color touch screen with user-friendly interface
  • Able to store up to 1,000 recipes
  • Capacity max. 1,000 kg/h
  • 2-8 main components and max. 14 in-line additives
  • Extremely compact
  • Able to handle powders and liquids in one system
  • Quick and easy change of additives
  • Option of weighing mixing bin (real time throughput measurement)
  • Industry 4.0 ready

Benefits MCHybrid 200

  • Compact design
    Because only the main components are blended gravimetrically, a high  capacity can be achieved with a relatively small batch blender.
  • Different materials handled
    The in-line dosing of the additives allows easy color change plus the  option to use additives that cannot be handled with a regular batch  blender, such as powders or liquids.
  • Extremely accurate
    As the additives are dosed in-line, no segregation can take place which prevents color variations.

MCContinuous Blender

Downloads

 Top of Page

Files coming soon.

Social


Copyright © 2019 Red Arrow Industries - All Rights Reserved.


 Top of Page

  • Red Arrow Industries
  • Hot Runner Controllers
  • Sprue Picker
  • Heat Transfer Solutions
  • Injection - Electric
  • Material Dosing/Blending
  • Material Loading
  • Size Reduction
  • Takeaway Robots SP
  • Sprue Picker
  • Takeaway Robots
  • Feeding Dosing Blending
  • Liquid Dosing
  • Flake and Powder Feeding
  • Continuous Blending
  • Volumetric Feeding Dosing
  • Software Load Access
  • Automotive
  • Pallet Automation

Cookie Policy

This website uses cookies. By continuing to use this site, you accept our use of cookies.

Accept & Close
